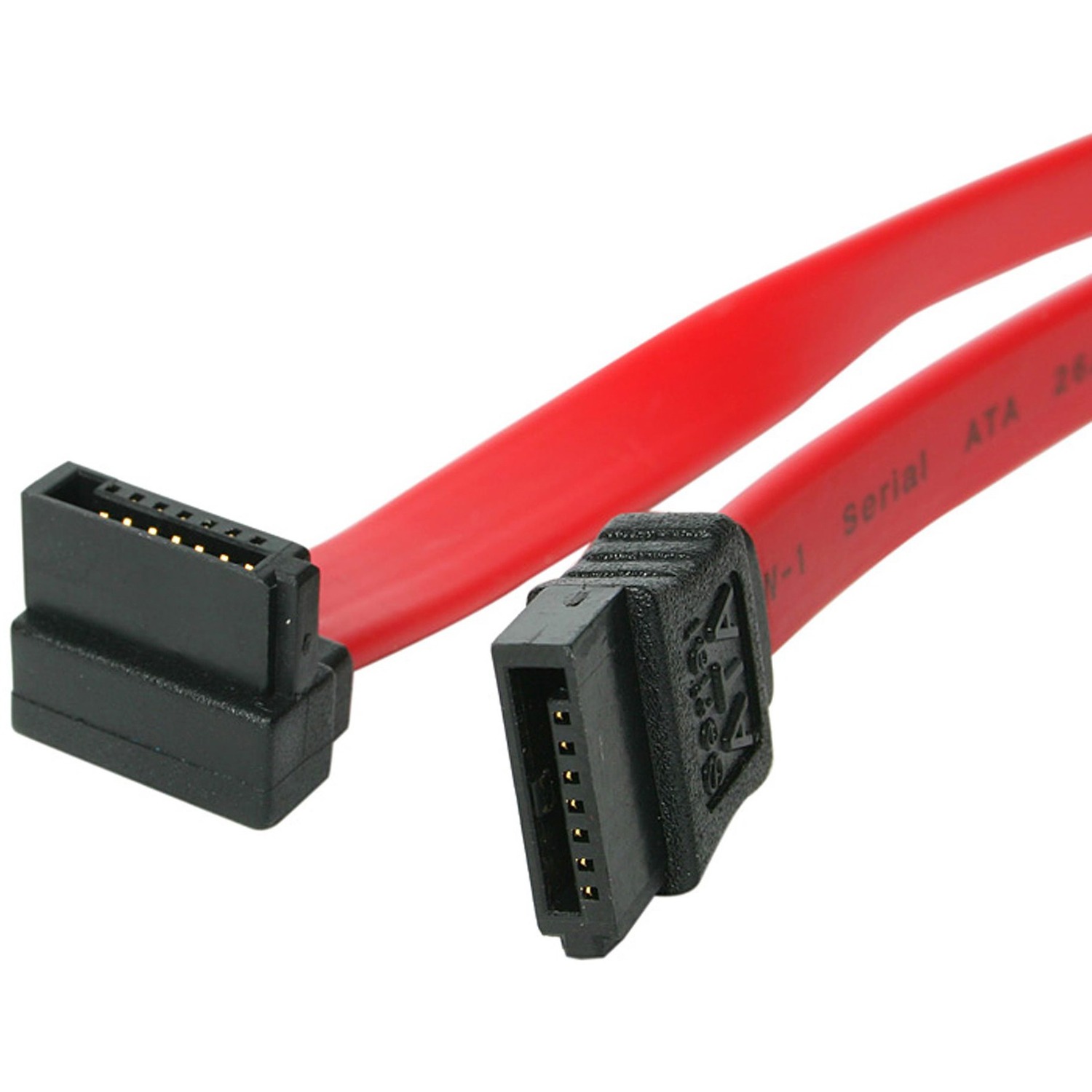

StarTech.com 24in SATA to Right Angle SATA Cable

Item #: STCSATA24RA1
Thumbnail image 1 of 1
Login for Pricing
List Price: $15.99 / Each
Packaging: 1 Each
Ships 6-10 Business Days
High Resolution
Hi - Res
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
2 ft SATA Data Transfer Cable for Hard Drive, Computer Case, Server, Workstation - First End: 1 x 7-pin SATA 3.0 - Female - Second End: 1 x 7-pin SATA 3.0 - Female - 6 Gbit/s - Red - 1 Each
  • 1x SATA connector
  • 1x Right-angled/90-degree SATA connector
  • Supports full SATA 3.0 6Gbps bandwidth
  • Provides 24" in cable length
  • Compatible with both 3.5" and 2.5" SATA hard drives
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
SATA24RA1
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Model
SATA24RA1
Product Name
24in SATA to Right Angle SATA Cable
Marketing Information
The SATA24RA1 Right Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a right-angled SATA receptacle, providing a simple 24-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives. The right-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool. Constructed of only top quality materials and designed for optimum performance and reliability this 24" SATA cable is backed by our lifetime warranty. As an alternative, StarTech.com also offers an 24in Left Angle SATA cable (SATA24LA1), which provides the same simple installation as this right angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction. More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Data Transfer Cable
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Cable Type
SATA
Cable Length
2 ft
Connector Type on First End
SATA 3.0 - Female
Connector Gender on First End
Female
Connector on First End Details
1 x 7-pin SATA 3.0 - Female
Connector Type on Second End
SATA 3.0 - Female
Connector Gender on Second End
Female
Connector on Second End Details
1 x 7-pin SATA 3.0 - Female
Conductor
Copper
Device Supported
  • Hard Drive
  • Computer Case
  • Server
  • Workstation
Data Transfer Rate
6 Gbit/s
Features
  • Flexible
  • 90° Angled Connector
  • Right-angled Connector
Physical Characteristics
Color Family
Red
Product Color
Red
Jacket Material
Polyvinyl Chloride (PVC)
Weight (Approximate)
0.04 lb
Miscellaneous
Additional Information
  • SATA II Compatible Cable
  • Connector A: Straight Connector
  • Connector B: Right Angled Connector
Certifications & Standards
  • FCC
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
REACH free of SVHC
Yes
REACH Declaration URL
https://media.startech.com/cms/pdfs/sata24ra1_rohs.pdf
EU RoHS Declaration URL
https://media.startech.com/cms/pdfs/sata24ra1_rohs.pdf
End of Life Manual Availability
Yes
WEEE Statement
https://media.startech.com/cms/pdfs/sata24ra1_weee.pdf
Country of Origin
China
Lifetime
